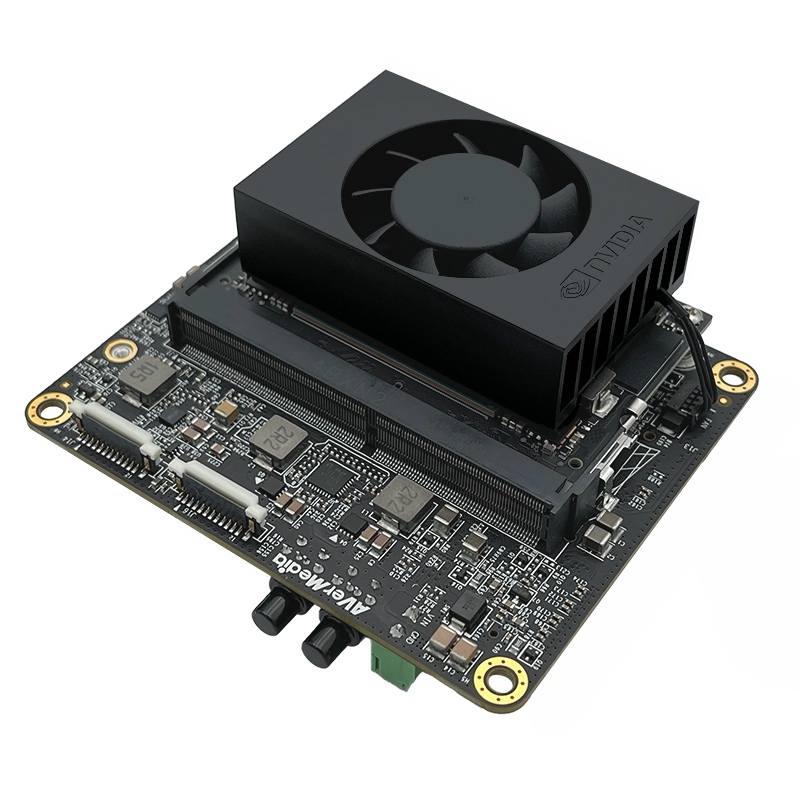

AVerMedia D133S AI Kit with Jetson Orin Nano/Orin NX

Incl. VAT: 562,59 € – 1.058,33 €

Excl. VAT: 464,95 € – 874,65 €

SKU: N/A Category: AI Kits Tags: Edge AI, Jetson Orin, Jetson Orin Nano, Jetson Orin NX Brand: AVerMedia

Unlock powerful edge AI capabilities with this compact and reliable AI Kit featuring the AVerMedia D133S Carrier Board and your choice of Jetson Orin module (Nano 4GB/8GB or NX 8GB/16GB). Designed for developers building next-generation embedded AI solutions, this edge ai device delivers impressive performance in a small form factor with full connectivity and robust thermal design.

Key Features

Flexible Jetson Module Options: Choose from NVIDIA® Jetson™ Orin Nano 4GB, Orin Nano 8GB, Orin NX 8GB, or Orin NX 16GB to match your application needs.

Reliable Carrier Board: Equipped with the AVerMedia D133S, an industrial-grade carrier board designed specifically for Jetson Orin Nano and NX modules. Built for durability, stability, and edge deployment in AI-powered systems.

Comprehensive I/O Interface:Featuring the AVerMedia D133S carrier board, this AI Kit delivers a wide range of high-performance I/O options designed for advanced edge AI projects. Explore the key I/O components below.

1× Gigabit Ethernet (RJ-45)
1× HDMI 2.0 output
2× USB 3.2 Type-A ports
2× MIPI CSI-2 camera inputs (4-lane, 22-pin)
1× M.2 Key M slot (NVMe SSD support)
1× M.2 Key E slot (Wi-Fi module support)
1× 20-pin header (I2C, UART, GPIO)
1 x USB 2.0 type C (for recovery)
12V power input (via 3.5mm terminal)

Compact Active Cooling: Integrated cooling fan ensures stable operation under AI workload.

JetPack SDK Compatibility: Compatible with the full NVIDIA JetPack SDK, this kit supports CUDA, cuDNN, TensorRT, and popular AI frameworks like PyTorch and TensorFlow—enabling developers to build and deploy edge AI applications with ease.

Whether you’re developing smart vision systems, robotics platforms, or other edge AI applications, this Jetson Orin-based AI Kit offers the performance, flexibility, and reliability to bring your ideas to life. With industrial-grade hardware and full software support, this edge ai device is an ideal foundation for rapid prototyping and deployment in real-world environments.

#	Jetson Orin Nano 4GB	Jetson Orin Nano 8GB	Jetson Orin NX 8GB	Jetson Orin NX 16GB
Memory	4GB 64-bit LPDDR5 51 GB/s	8GB 128-bit LPDDR5 102 GB/s	8GB 128-bit LPDDR5 102.4GB/s	16GB 128-bit LPDDR5 102.4GB/s
AI Performance	34 TOPS	67 TOPS	70 TOPS	100 TOPS
GPU	512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
CPU	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3	8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
DL Accelerator	-	-	1x NVDLA v2	2x NVDLA v2
Vision Accelerator	-	-	1x PVA v2	1x PVA v2
Storage	- (Supports external NVMe)	- (SD Card Slot & external NVMe via M.2 Key M)	- (Supports external NVMe)	- (Supports external NVMe)
Video Encode	1080p30 supported by 1-2 CPU cores	1080p30 supported by 1-2 CPU cores	1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265)	1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265)
Video Decode	1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265)	1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265)	1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265)	1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265)
CSI Camera	Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps)	Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps)	Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps)	Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps)
PCIe	1 x4 + 3 x1 (PCIe Gen3, Root Port, & Endpoint)	1 x4 + 3 x1 (PCIe Gen3, Root Port, & Endpoint)	1 x4 + 3 x1 (PCIe Gen4, Root Port, & Endpoint)	1 x4 + 3 x1 (PCIe Gen4, Root Port, & Endpoint)
USB	3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0	3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0	3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0	3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0
Networking	1x GbE	1x GbE	1x GbE	1x GbE
Display	1x 4K30 multi-mode DP 1.2 (+MST)/eDP 1.4/HDMI 1.4**	1x 4K30 multi-mode DP 1.2 (+MST)/eDP 1.4/HDMI 1.4**	1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1	1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
Other I/O	3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs	3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs	3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs	3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs
Power	7W - 10W - 25W	7W - 15W - 25W	10W - 15W - 25W - 40W	10W - 15W - 25W - 40W

Parameter	Hardware Details
Type	Carrier Board
Model	D133S
NVIDIA GPU SoC Module Compatibility	NVIDIA® Jetson Orin NX/ Orin Nano module
Super Mode	Support
Networking	1 x GbE RJ-45 1 x M.2. key E 2230 for wifi
Display Output	1 x HDMI output 3840 x 2160 at 60Hz for Orin NX, 30Hz for Orin Nano
Temperature	Operating temperature -40°C~85°C Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing
MIPI Camera Inputs(Internal)	2 x 4 lane MIPI CSI-2, 22 pin FPC 0.5mm Pitch
USB	1 x USB 2.0 type C for recovery 2 x USB 3.2 Type-A
Storage	1x M.2. key M 2280 for NVMe
Expansion Header	20 pins: 2x I2C, 1x UART, 9x GPIOs 15 pins: support OOB module (optional, sold separately)* 5 pins & 30 pins: support 4G/5G functions via daughter board (optional, sold separately)*
Security	TPM 2.0 supported
Input Power	3.5mm Screw Terminal; 12V/5A, 9V~24V is recommended.
Power Cord	US/JP/EU/UK/TW/AU/CN (optional)
Thermal solution	Fan solution (optional)
Buttons	Power and Recovery
RTC Battery	Support RTC battery and Battery Life Monitoring by MCU
PCB/Electronics Mechanical Info	90mm x 76mm (3.54” x 2.99”) W/O mounting hole Weight: 70g
Certifications	CE, FCC, VCCI,KC (TBD)
Package	1x D133S Carrier board DC IN jack cable screws
