Sirius AI Box – NVIDIA Jetson Orin Nano/Orin NX (4GB/8GB/16GB)

Incl. VAT: 1.005,87 € – 1.501,61 €

Excl. VAT: 831,30 € – 1.241,00 €

Jetson Module

Clear

SKU: N/A Category: Boxed AI Systems Tags: Edge AI, Jetson Module, Jetson Orin Nano, Jetson Orin NX Brand: OmniWise

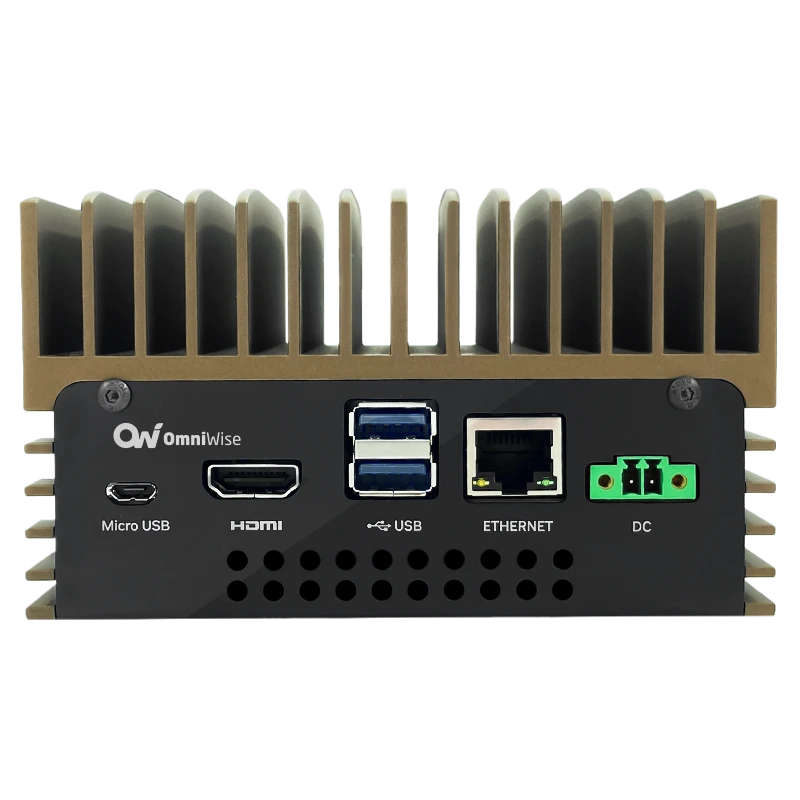

OmniWise Sirius AI Box is a compact, fanless Jetson Orin edge AI computer built to handle a wide range of AI applications. Powered by NVIDIA® Jetson™ Orin Nano or Orin NX modules, it delivers scalable performance to support everything from basic AI inferencing to demanding machine learning workloads.

Key Features:

Modular Compatibility: Supports NVIDIA Jetson Orin Nano (4GB, 8GB) and Orin NX (8GB, 16GB) modules.
Efficient Thermal Design: Fanless architecture ensures silent operation and reliability in harsh environments.
Comprehensive I/O Interfaces:
- 3× USB 3.2 Gen2 (10 Gbps)
- 3× USB 2.0
- 1× HDMI output (up to 4K30 with Orin Nano, up to 8K30 with Orin NX)
- 1× 10/100/1000 Base-T RJ45 Ethernet
- 1× M.2 M-Key (2280) for NVMe SSD
- 1× M.2 E-Key for Wi-Fi / Bluetooth
- 1x UART, 1x I2C, 2x SPI, 4x GPIOs

With its modular architecture and NVIDIA Jetson acceleration, The Sirius AI Box provides a future-ready, compact solution for deploying AI at the edge. Whether you’re developing intelligent vision systems, robotics, or automation projects, this fanless Jetson Orin edge AI computer provides a reliable, flexible, and scalable foundation.

#	Jetson Orin Nano 4GB	Jetson Orin Nano 8GB	Jetson Orin NX 8GB	Jetson Orin NX 16GB
Memory	4GB 64-bit LPDDR5 51 GB/s	8GB 128-bit LPDDR5 102 GB/s	8GB 128-bit LPDDR5 102.4GB/s	16GB 128-bit LPDDR5 102.4GB/s
AI Performance	34 TOPS	67 TOPS	70 TOPS	100 TOPS
GPU	512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
CPU	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3	8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
DL Accelerator	-	-	1x NVDLA v2	2x NVDLA v2
Vision Accelerator	-	-	1x PVA v2	1x PVA v2
Storage	- (Supports external NVMe)	- (SD Card Slot & external NVMe via M.2 Key M)	- (Supports external NVMe)	- (Supports external NVMe)
Video Encode	1080p30 supported by 1-2 CPU cores	1080p30 supported by 1-2 CPU cores	1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265)	1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265)
Video Decode	1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265)	1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265)	1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265)	1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265)
CSI Camera	Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps)	Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps)	Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps)	Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps)
PCIe	1 x4 + 3 x1 (PCIe Gen3, Root Port, & Endpoint)	1 x4 + 3 x1 (PCIe Gen3, Root Port, & Endpoint)	1 x4 + 3 x1 (PCIe Gen4, Root Port, & Endpoint)	1 x4 + 3 x1 (PCIe Gen4, Root Port, & Endpoint)
USB	3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0	3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0	3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0	3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0
Networking	1x GbE	1x GbE	1x GbE	1x GbE
Display	1x 4K30 multi-mode DP 1.2 (+MST)/eDP 1.4/HDMI 1.4**	1x 4K30 multi-mode DP 1.2 (+MST)/eDP 1.4/HDMI 1.4**	1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1	1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
Other I/O	3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs	3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs	3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs	3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs
Power	7W - 10W - 25W	7W - 15W - 25W	10W - 15W - 25W - 40W	10W - 15W - 25W - 40W
